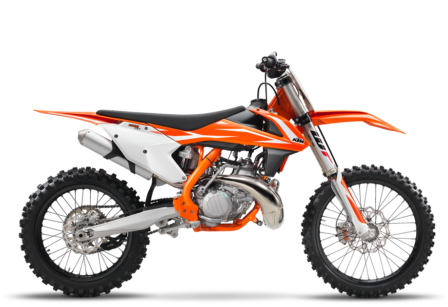

250 SX 2021

FIREBALL

SLIM AND SMART

WORLD-PROOF

STRIKING GOOD LOOKS

• ENGINE

  The engine of the 250 SX has been known and respected for being the most powerful 2-stroke engine in its class. But we thought the segment could use an extra push and a solid statement: 2-strokes have...

  więcej

  ... a future at KTM. Their outstanding power-to-weight ratio, low cost and simplicity see to that. Putting our money where our mouth is, we gave the 250 SX engine an all new architecture with a new shaft arrangement for better mass centralization, a new cylinder with twin-valve controlled power valve, a new counter balance shaft for less engine vibrations, a 5-speed transmission and a hydraulically operated DDS clutch. This compact firecracker truly outshines the competition with its ripping performance and is the right choice for lovers of low purchasing and maintenance costs. Oh, and of course don’t forget that belly tingling 2-stroke symphony when you’re on the pipe.

• CYLINDER

  The newly developed cylinder of the 250 SX - with a bore of 66.4mm - has all-new ports and is fitted with an overhauled power valve system. This system features a sophisticated mechanism for the later...

  więcej

  ...al support exhaust ports, providing smooth and controllable power on tap. Furthermore, it’s possible to change the bike’s mood in seconds thanks to two supplied powervalve springs. Limitless settings for different tracks and preferences are up for grabs. Throw everything you have at it; new water jackets in the cylinder and head will take care of excess heat and reworked lateral cylinder head brackets allow a more efficient fixation of the engine to the frame via lightweight  head stays. Yes, this is a serious piece of kit.

• ENGINE CASES

  These all-new die-cast engine cases feature a 4mm higher clutch shaft and a 19.5mm higher crankshaft, resulting in better mass centralization. Which is nice if you care about sweet rideability. In add...

  więcej

  ...ition, it allows the implementation of a counter balance shaft. So your ride will be as relaxed as it is rapid. Plus, your new favorite engine will keep looking as fresh as the day you bought it: redesigned engine covers feature a smart surface structure in order to reduce the wear caused by the rider’s boots.

•

  TRANSMISSION

  This reworked 5-speed gearbox has the same gear ratios as its predecessor, but our engineers took a close look at the mechanism in order to provide you with more precise and easier shifting. Keeping s...

  więcej

  ...afety in mind, an advanced ´No Dirt´gear lever design prevents muck from blocking the joint. Because even dirt lovers hate mud when it’s in the wrong places.

• FEATHERWEIGHT

  KTM engineers just love dropping weight year after year. The result: the 2017 SX models are the slimmest, lightest dirt bikes out there.

•

  FRAME

  The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on high torsional rigidity and l...

  więcej

  ...ow longitudinal stiffness. This results in better absorption of the energy created from the front and rear suspension, sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight  engine head stays (the connection between cylinder head and frame) contribute to  precise cornering and a reduced vibration level. The engineers were able to pull off all that, while making their frame a big fat kilogram lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of stable aluminum profiles, which tiptoes the scales at less than 900g.

•

  FOOTPEGS

  Sophisticated ´No Dirt´ footpegs prevent smudging up the pegs, even when digging in deep ruts. Looking for a higher riding position? Then just mount the footpegs of the MY2017 EXC models, which are 6m...

  więcej

  ...m higher than the SX versions.

•

  AIRBOX

  The airbox design offers maximum protection of the air filter against soiling, while ensuring maximum airflow. The large twin-air filter is mounted in a stiff cage, which at the same time holds the sy...

  więcej

  ...stem in place. This design is so simple, you could still pop a fresh one in with a face full of mud. Without tools. In seconds.

•

  MONOSHOCK

  The WP monoshock has been developed with the entire frame and swingarm architecture in mind, including the linkage system and the WP AER 48 front forks. It features machined and black anodized compone...

  więcej

  ...nts and is a valuable, high-end product compared to roughcast reservoirs. A new setting and a softer spring perfectly match the reworked front-end set-up and its sparkling WP color scheme lets everyone know you have excellent taste in suspension.

•

  FORKS

  The lightweight WP AER 48 front fork, a 48mm USD air-sprung fork developed by WP in close collaboration with KTM, is a split fork with separate functions for each leg. That means damping functions are...

  więcej

  ... on the right side, whereas the air spring is in the left. This left leg features a two-chamber system with a capsuled air cartridge to prevent loss of air pressure. Should the outer seal start to leak, the internal cartridge pressure will keep the bike in position. The air spring is easy to adjust to any rider weight via a single air valve. No special tools are required; the air pump supplied with the bike will do just fine. The right fork leg integrates a damping cartridge that tailors to all your damping needs. It can be adjusted to the track conditions and the rider’s preferences with a twist of a dial (compression from the top, rebound from the bottom, 30 clicks each). For MY2017, the AER 48 also features redesigned outer tubes with better bending characteristics, smoother operation and less friction. Plus: they’ve lost some weight (265g). Right off the dealer floor, these forks are more comfortable and more sensitive than ever. But you can still hammer the hell out of them.

•

  TRIPLE CLAMP

  Top quality, CNC machined triple clamps have been something of a KTM trademark for years. Ensuring a precise handling, they perceptibly support the flex characteristics, and with it the action of the ...

  więcej

  ...forks. For MY2017, the upper triple clamp specifically features a redesign in conjunction with the new fork tubes. The rubber damped handlebar fixation has also been reworked and the lower handlebar clamps are now separated, while on the upper side a new bridge-type clamp guarantees more torsional stiffness and can easily be replaced in case it gets twisted due to a crash. In addition, an hour meter is fitted at the upper triple clamp in order to let the rider know it’s time for a service. Or a cold drink.

•

  BRAKES

  You couldn’t brake any harder, better, faster or stronger. These high-tech Brembo babies are combined with lightweight wave discs made by Galfer. For MY2017, the rear brake features a 10mm longer brak...

  więcej

  ...e pedal and you get new, less aggressive brake pads all round.

•

  BODYWORK

  KTM R&D, Kiska Design and all our factory riders had their say in shaping the plastics. Their goal: complete harmony between rider and bike. And so it turned out. Perfect ergonomics and contact points...

  więcej

  ..., maximum freedom of movement, a low seat height and sweet comfort, especially in the rear part of the seat. The I-beam structures of the front and rear fenders are prime examples of such an intelligent design, guaranteeing maximum stability and a low weight thanks to well thought-out construction and mounting. Plus: they stay cleaner for longer.

•

  GRAPHICS

  A new, tailor-made kit, fit for a king. Because in this sport, champs deserve to look the part regardless of the dirt.
