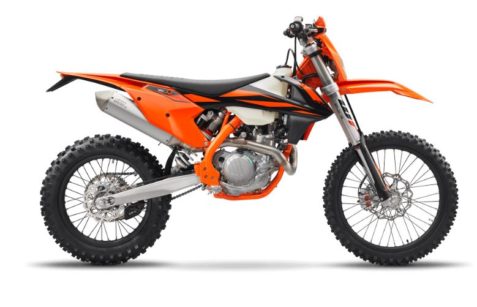

450 EXC-F 2021
TAME ANY TERRAIN
Droga do zostania bestsellerem prowadzi przez lata błota, potu i majstrowania przy przełożeniach. W KTM 450 EXC-F nigdy nie pozostawiano spraw swojemu biegowi — na podium wyniósł go własny, niesamowity stosunek mocy do masy. Gdy brniesz w błocie, przyjemność kontroli nad tą kompaktową maszyną porusza wszystkie zmysły.
CENA:
46955 zł* 2021
* ze względu na wahania kursowe rzeczywista cena może się różnić
Cechy
-
ENGINE
Small in dimensions, sky-high on output. The 450 EXC-F’s fuel-injected SOHC powerhouse has been redesigned in order to make it the most compact and lightest 450 on the market, while delivering groundb...
więcej...reaking torque and power figures over the entire rev range thanks to a reworked single overhead camshaft cylinder head and the latest electronic fuel injection. Class-leading and cutting-edge: just the way we like it. And it’s Euro IV homologated, so it’s green, while they are green with envy.
-
CYLINDER HEAD
The SOHC cylinder head has been completely reworked. An all-new overhead camshaft now controls the gas flow through optimized ports, while a redesigned water jacket and combustion chamber take care of...
więcej... explosion and heat management. The engine’s four valves can now rely on extremely rigid rocker arms. Their timing chain has been shortened and its chain guides now have less friction to deal with. Two new lateral brackets allow an efficient fixation of the engine to the frame and reduce vibrations.
-
CRANKSHAFT
The 450 EXC-F’s crankshaft features a stiffer design and employs a shorter connecting rod, which makes for an overall compact and lightweight engine with a snappy power delivery. Even though it is 100...
więcej...g lighter it provides the same inertia as the predecessor, while a higher balancing factor reduces the vibration level. A plain big-end bearing with two force-fitted bearing shells runs directly on the crank pin. The necessary oil feed for this bearing is ensured by the engine’s pressure lubrication. This design enhances the engine’s durability, allowing long crankshaft service intervals – a customer benefit in respect of time, effort and cost. An improved sealing concept with metal shims instead of seal rings reduces space in the crank room and keeps the engine ultra-slim. A shorter primary ratio (31/76 instead of 32/76) reduces the shaft distance, also contributing to its compact dimension. More power, longer service intervals, no half measures.
-
ELECTRIC STARTER
The 450 EXC-F is fitted with a unique electric starter as standard, which is a clear advantage when it comes to crunch time in the heat of battle. A strong starter motor and a reliable lithium ion bat...
więcej...tery will fire up your 450 time and time again at the push of a button. In order to reduce weight to the minimum, there is no kick-starter. You won’t miss it. If by any chance you do, just retrofit a PowerParts replacement kit to get your kicks.
-
ENGINE CASES AND COVERS
The new design of the die-cast engine cases allows a much more centralized shaft configuration, raising the crankshaft by 7mm and backing it up by 9mm. In other words: closer to the bike’s center of g...
więcej...ravity. This also shaves off another 550 grams. Newly designed engine covers feature an advanced surface structure in order to reduce the wear caused by the rider’s boots. Do what you want to it, it’ll keep on shining.
-
TRANSMISSION
The new engine is fitted with a smooth, tailor-made 6-speed Enduro gearbox, running like clockwork thanks to a special low-friction coating on the shift forks, special surface treatment on the 5th and...
więcej... 6th gears and a reworked shift drum. Its advanced ´No Dirt´ gear lever design prevents dirt from blocking the joint of the lever and guarantees smooth and safe shifts. All 4-stroke engines are fitted with a gear sensor that sync the power curve to the gear you’re in and the surface you’re on. Yes, smart is sexy. And fast.
-
ENGINE MANAGEMENT SYSTEM
The state-of-the-art Keihin Engine Management System with electronic fuel injection features an all-new 42mm throttle body. Thanks to its unique injector position, the engine’s response gives a whole ...
więcej...new meaning to the word ‘instantaneous’. And to make life even easier, separate systems for cold starts and idle adjustment await you. Push the throttle back when the engine’s alive and well, and the cold start mode disengages. And with an optional map switch you can select a stronger power curve and activate the unique traction control system for maximized grip.
-
CYLINDER AND PISTON
Inside the shortened cylinder, with a bore of 95mm, thumps a forged box-in-box type piston with an ultra-light piston pin. Its crown geometry is adapted perfectly to the combustion chamber, where its ...
więcej...rigid structure and low weight shine. Thanks to low oscillating masses, the engine is as perky and smooth as it’s powerful.
-
COUNTER BALANCE SHAFT
In order to balance the mass forces, the 450 EXC-F engine uses a multifunctional, side-mounted counter balance shaft, which at the same time drives the water pump. Its has been balanced to perfection,...
więcej... keeping vibration levels to a minimum, even while gunning it to the maximum.
-
CLUTCH
The 450 EXC-F employs the KTM-developed DDS clutch (damped diaphragm steel) with a wear-free steel basket and extremely heat resistant clutch plates. This clever design employs a diaphragm spring inst...
więcej...ead of the usual coil springs, which makes for a considerably easier clutch action. A diaphragm spring also leaves sufficient space for a damping system to be integrated into the clutch hub. The goal was traction, yes, but durability as well. On top of that, it is fitted with a lighter basket, a reworked inner hub and a pressure plate providing better oil supply and unsurpassed cooling. Of course, light operation and magic amounts of control are what makes this particular clutch, a hydraulic Brembo clutch.
-
WEIGHT REDUCTION
The main target for the KTM engineers when developing the EXC models was a massive weight reduction compared to the previous generation. The result: the current EXCs are the slimmest, lightest bikes i...
więcej...n the Enduro scene, even though the engines are equipped with an electric starter as a standard feature, while the competition still needs to be kick-started. You can just focus on kicking ass.
-
FRAME
The high-tech, lightweight chrome-moly steel frame has a knack for easy handling, outlandish rideability, precise cornering and excellent stability. You can also count on high torsional rigidity and l...
więcej...ow longitudinal stiffness. This results in better absorption of the energy created from the front and rear suspension sucking up jumps and bumps. In short: more comfort and less rider fatigue. Laterally attached, lightweight engine head stays (the connection between cylinder head and frame) contribute to a reduced vibration level. Two threaded inserts in the lower cradle tubes allow for safe fixation of an optional skid plate. The engineers were able to pull off all that, while making their frame a big fat kilogram lighter than that of the lightest competitor on the market. In addition, it is easier to maintain, easier to work on and supplies more space for the tank and other components. The bike also features an extra-light subframe made of stable aluminum profiles, which tiptoes the scales at less than 900g.
-
FOOTPEGS
Sophisticated ´No Dirt´ footpegs prevent smudging up the pegs, even when digging in deep ruts. The pegs on the EXC models are 6mm higher than the ones used on SX versions, which benefits ground cleara...
więcej...nce. But you can swap them at will.
-
SWINGARM
This updated design allows for an optimized mounting position of the PDS (progressive damping system) shock, providing even more progressive action. Furthermore, the cast aluminum design guarantees lo...
więcej...wer weight (-220g) and a perfect flex behavior. The single-component casting process also eliminates any inconsistencies and inherent weak points created by welding. And it’s better looking.
-
REAR SUSPENSION
The WP XPlor PDS is a newly developed rear shock. The PDS, the KTM proven and successful progressive damping system is kind of a KTM trademark where the shock absorber is directly connected to the up...
więcej...per side of the swingarm. We don’t use any linkage systems. This set-up has now been reworked with the new frame and swingarm architecture in mind. It boasts the best possible mounting geometry, provides even more progressive damping and features an all-new body with a smaller piston and a larger reservoir. The piston diameter was reduced from 50 to 46mm for reduced weight, the total length is reduced by 2.5mm and the shock stroke shrank by 4mm. In addition, it is now mounted 5mm closer to the centerline, which means nearly symmetrical loads for the swingarm and frame and more space for the exhaust. A second piston works together with a closed cup (instead of a needle) towards the end of the stroke and is supported by a progressive shock spring. It will be hard to bottom this rugged bad boy out. Still, we managed to cut its weight by more than 600g. Various machined and anodized components and a distinctive WP color trim (black reservoir, white spring, silver body) make this a valuable, high-end product compared to the roughcast bodies of many competitors. You’d almost hate to see it get dirty. Almost.
-
FRONT SUSPENSION
The all-new WP XPlor 48 upside-down fork is a split fork developed by WP in close collaboration with KTM. It is fitted with a spring on both sides but features separated functions for each fork leg: c...
więcej...ompression damping is fitted on the left side, while rebound is on the right. So the forks can easily be adjusted for compression and rebound with the twist of a dial on top of the fork tubes (30 clicks each). In addition, a longer and sealed hydro-stop guarantees better resistance to bottoming-out. Due to high-quality materials and a state-of-the-art production process, the new XPlor 48 fork - with approx. 300mm of travel - has outstanding response and damping characteristics and is about 200g lighter than its predecessor. A new, optional preload adjuster allows for a threefold spring preload setting without any tools. Easy as one, two, three.
-
BRAKES
You couldn’t brake any harder, better, faster or stronger. These high-tech Brembo babies are combined with lightweight wave discs. And the rear brake now features a 10mm longer brake pedal combined wi...
więcej...th a smaller caliper piston for better modulation. The steel-flex front brake hose enjoys better protection tube with an integrated channel for the speedo cable. First you outrun them, then you outbrake them.
-
HANDLEBARS
KTM engineers sure know how to handle handlebars. This tapered one, made of high-strength aluminum by NEKEN, features a newly developed throttle assembly with a robust aluminum body and straightforwar...
więcej...d free-play adjustment. An ODI volcanized grip sits on the right, while on the left side of the bar a comfortable ODI lock-on grip is mounted, which does not require any wire or glue to be fixed. You can now retrofit two interchangeable throttle cams, for different response characteristics to suit your specific needs. Another option is the handlebar map switch, which allows for the selection of an even feistier power curve. In addition, you can activate the revolutionary traction control at the push of a button. Bring it on, world.
-
TRIPLE CLAMPS
The new generation is fitted with forged triple clamps with an offset of 22mm, ensuring a solid grip of the fork and precise handling. You can move the handlebar forwards and backwards over 4 position...
więcej...s, so the bike should fit you like your gloves.
-
AIRBOX
The revised airbox design, incorporating new snorkels, offers maximum protection of the air filter against soiling, while ensuring maximum airflow in a quiet way. The new, large Twin Air filter is mou...
więcej...nted in a stiff cage, which at the same time holds the system in place. This design is so simple, you could still pop a fresh one in with a face full of mud. Without tools. In seconds.
-
FUEL TANK
A lightweight polyethylene tank with a capacity of 8.5 liters of juice. You will always be able to see how much fuel there’s left at a glance, thanks to its see-through plastic. By pushing the orange ...
więcej...release button in the center of the filler cap, the bayonet mechanism makes refueling a snap. The 4-stroke models are fitted with an integrated fuel pump system and an additional fuel level sensor. On the new models the fuel line features a 90° connector to the tank for better protection against damage.
-
EXHAUST
FIM noise limits are a real challenge for every manufacturer. Therefore, KTM has put a lot of effort into the development of their exhaust systems. All 4-strokes are fitted with new header pipes and a...
więcej... shorter silencer, mounted as close to the engine as possible. You know what that means: more power, extra mass centralization and better rideability. An advanced internal design reduces the noise sufficiently in order to sit safely below the FIM noise limit, while still raising the hairs on your neck.
-
WHEELS
The KTM wheels feature lightweight, CNC machined hubs and high-end Giant rims guaranteeing maximum stability at minimum weight. The wheels are fitted with the latest Maxxis tires. The rear tire featur...
więcej...es a reworked profile and internal structure for better grip under wet conditions and is more resilient to punctures. Take them wherever you like, traction will be waiting.
-
COOLING SYSTEM
KTM’s proven cooling system routes the coolant from the cylinder head through the frame triangle, directly to aluminum radiators made by WP, which have a new filler cap system and are made of a stiffe...
więcej...r alloy. Due to flow optimized internal circulation and CFD-calculated air ventilation, the system is superbly efficient. Because of their high power output, the 450 and 500 EXC-F are fitted with a radiator fan as standard, which is now regulated by the ECU. In addition, well thought-out radiator guards integrated in the front part of the spoilers provide protection in case of crashes.
-
SEAT
Tailored to meet the needs of the world’s fastest backsides, this durable seat offers great comfort, while being 10mm lower to help you master the most challenging terrain.
-
BATTERY & WIRING HARNESS
All EXC-F engines are fitted with an electric starter – a unique KTM feature and a major benefit at all levels of offroad racing. A super compact 495g lithium ion starter battery breathes life into th...
więcej...e engine, shaving off an entire kilogram of excess weight while offering three times the starting energy. Because of its reliability, we decided to eliminate the kick-starter entirely. The battery and wiring harness are centralized in a compartment above the airbox, allowing the mechanic to remove the subframe without getting in conflict with the electrics. Because a happy mechanic, is a good mechanic.
-
BODYWORK
KTM R&D, Kiska Design and all our factory riders had their say in shaping the plastics. Their goal: complete harmony between rider and bike. And so it turned out. Perfect ergonomics and contact points...
więcej..., maximum freedom of movement, a low seat height and sweet comfort, especially in the rear part of the seat. The I-beam structures of the front and rear fenders are prime examples of such an intelligent design, guaranteeing maximum stability and a low weight thanks to well thought-out construction and mounting. Plus: they stay cleaner for longer. Or take a look at the headlight fairing. Can you spot the smart solution that makes sure your brake hose never makes nasty scratches again?
-
GRAPHICS
A new, tailor-made kit, fit for a king. Because in this sport, champs deserve to look the part regardless of the dirt.
Specyfikacja
Engine
| Design | 1-cylinder, 4-stroke engine |
| Displacement | 449.3 cm³ |
| Bore | 95 mm |
| Stroke | 63.4 mm |
| Starter | Electric starter |
| Transmission | 6-speed |
| Clutch | Sprzęgło wielotarczowe mokre DDS, układ hydrauliczny Brembo |
| EMS | Keihin EMS |
| CO2 emissions | 82.3 g/km |
| Fuel consumption | 3.55 l/100 km |
Chassis
| Frame design | Rama z centralną rurą ze stali 25CrMo4 |
| Rear suspension | Amortyzator Xplor PDS WP |
| Suspension travel (front) | 300 mm |
| Suspension travel (rear) | 310 mm |
| Front brake | Disc brake |
| Rear brake | Disc brake |
| Front brake disc diameter | 260 mm |
| Rear brake disc diameter | 220 mm |
| Steering head angle | 63.5 ° |
| Ground clearance | 355 mm |
| Seat height | 960 mm |
| Weight READY TO RACE (without fuel) | 106 kg |
